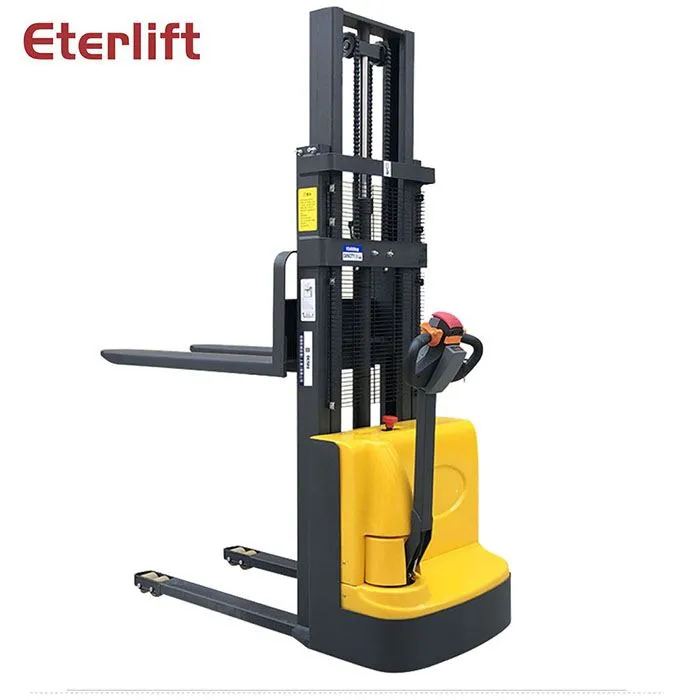

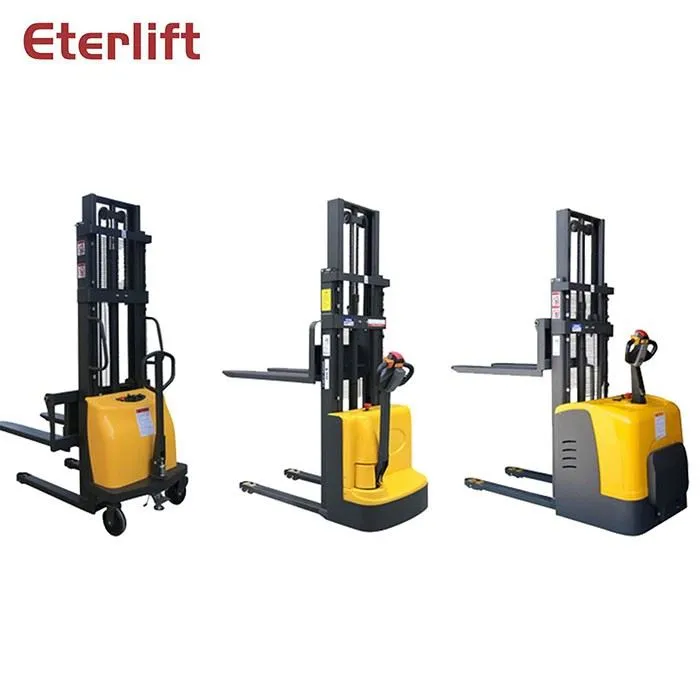

The stacker has simple structure, flexible control, good micro-movement, and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in high-bay warehouses and workshops. It can be widely used in petroleum, chemical, pharmaceutical, textile, military, paint, pigment, coal and other industries, as well as ports, railways, freight yards, warehouses and other places containing explosive mixtures for loading, unloading, stacking and handling operations. It can greatly improve work efficiency, reduce labor intensity of workers, and win market competition opportunities for enterprises.
Model Number | EL10-16 | EL10-25 | EL10-30 | EL-10-35 |
Load capacity | 1000kg/1500kg (Optional) | |||
Load Center | 400mm | |||
Lifting Height | 1600(mm) | 2500(mm) | 3000(mm) | 3500(mm) |
Max.Fork Height | 2050(mm) | 2950(mm) | 3450(mm) | 4050(mm) |
Fork length | 1130(mm) | |||
Fork Width | 680(mm) | |||
Fork size | 160*55(mm) | |||
Turning Radius | 1500(mm) | |||
Cargo Passage | 2100(mm) | |||
Moving Speed(km/h) | 2.5/3.0(Full load/No load) | |||
Rising Speed(mm/s) | 75/116(Full load/No Load) | |||
Descent Speed(mm/s) | 70/56(Full load/No load) | |||
Max.Climbing Capacity % | 3/5(Full load/No load) | |||
Battery | 24/90(V/Ah) | |||
Driving Motor | 0.65(kw) | |||
Lifting Motor | 1.6(kw) | |||
Overall Length | 1745(mm) | |||
Overall Width | 820(mm) | |||
Overall Height | 2050(mm) | 1750(mm) | 2000(mm) | 2340(mm) |
Net Weight | 480(kg) | 535(kg) | 550(kg) | 570(kg) |
1. How to choose the suitable model for lifting work.
Pls tell us the lifting height and the load capacity you required,its better to tell me the using purpose for you to buy it,we can offer the best solutions for you .Such as if your working height is 10m,you can choose 8m lifting height machine,usually the lifting height plus 2m equals to working height.
2. How about the warranty?
Usually the warranty time is 12 months,all our products are CE certified,its failure rate is very low.We will send some wear parts to you together with the product,during use,if need you can replace it by yourself,no need to buy it.
3. How about voltage?
We accept the worldwide voltage customization,pls free to tell us your requirements,we will design according to your requirement.
