Hydraulic Aluminum Alloy Lift

Hydraulic Aluminum Aerial Platform Lift Table is a mechanical equipment which is supported by aluminum profile and powered by hydraulic pump to control the rising or falling of working platform.The equipment can choose AC power supply, support the voltage of 110V, 230V, 380V ac. When working, need to be connected to the power supply.The device can also be powered by battery, and the platform can be controlled to rise or fall just by charging the device fully before use.If the working time is long, it needs to be equipped with large capacity battery.The aluminum alloy aerial working platform is light in weight, simple in structure, stable in electronic control unit and low in failure rate. It is suitable for ordinary household use (such as wall painting, house maintenance, lamp installation, etc.), and also suitable for installation and maintenance of cable lines in factories.

Send Inquiry

Description

Hydraulic Aluminum Aerial Platform Lift Table

Specifications:

Model			AWP06	AWP08	AWP10	AWP12
The Max Height		mm	6m	8m	10m	12m
Working height		mm	8m	10m	12m	14m
Load capacity		kg	300	300	250	200
Platform size		mm	1500x600	1500x600	1620x600	1740x600
Power	AC	V	220/110/380
Power	DC	V	24
Voltage		v	We can design the voltage as per your request
Overall size(LxWxH)		mm	1550x900x1970	1550x900x1970	1670x900x2070	1790x900x2070
Net weight	AC	kg	480	580	680	780

single aluminum mast aerial work platform

Detail show:

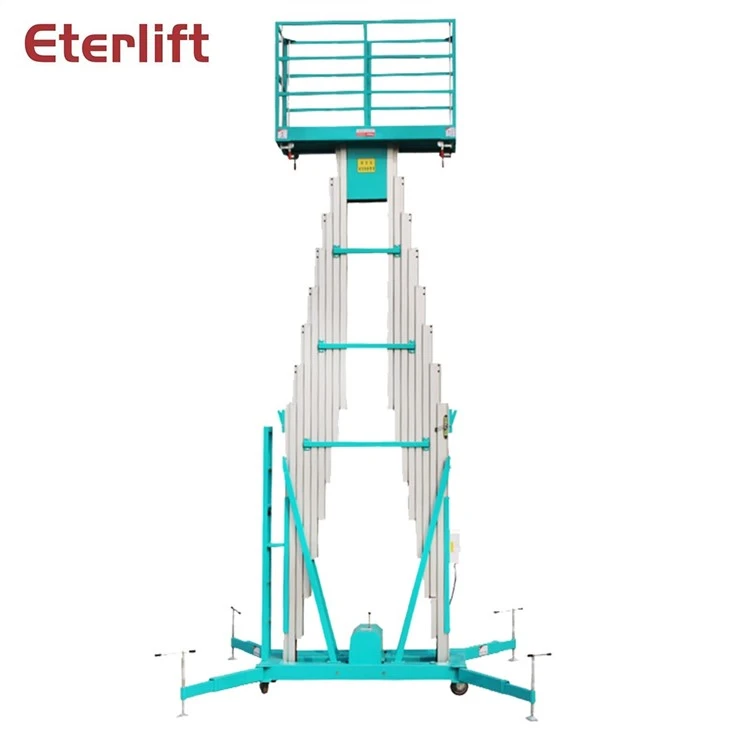

Mast Telescopic Aerial Platform Lift Table

1. Height adjustable support leg

2. Control cabinet with AC contactor

3. 24V voltage control motor

4. Detachable platform guardrail

The color of Hydraulic Aluminum Alloy Lift can be customed.

The equipment can choose AC power supply, support the voltage of 110V, 230V, 380V ac. When working, need to be connected to the power supply.The device can also be powered by battery, and the platform can be controlled to rise or fall just by charging the device fully before use.If the working time is long, it needs to be equipped with large capacity battery.The aluminum alloy aerial working platform is light in weight, simple in structure, stable in electronic control unit and low in failure rate. It is suitable for ordinary household use (such as wall painting, house maintenance, lamp installation, etc.), and also suitable for installation and maintenance of cable lines in factories.

single mast aerial work platform_副本

Model			AWP06	AWP08	AWP10	AWP12
The Max Height		mm	6m	8m	10m	12m
Working height		mm	8m	10m	12m	14m
Load capacity		kg	300	300	250	200
Platform size		mm	1500x600	1500x600	1620x600	1740x600
Power	AC	V	220
Power	DC	V	24
Voltage		v	We can design the voltage as per your request
Overall size(LxWxH)		mm	1550x900x1970	1550x900x1970	1670x900x2070	1790x900x2070
Net weight	AC	kg	480	580	680	780
