The Role of Proportional Valves in Self-Propelled Scissor Lifts | Complete Guide

Key Words: Self-propelled scissor lift, proportional valve, hydraulic system, lift speed control, smooth operation, aerial work platform safety

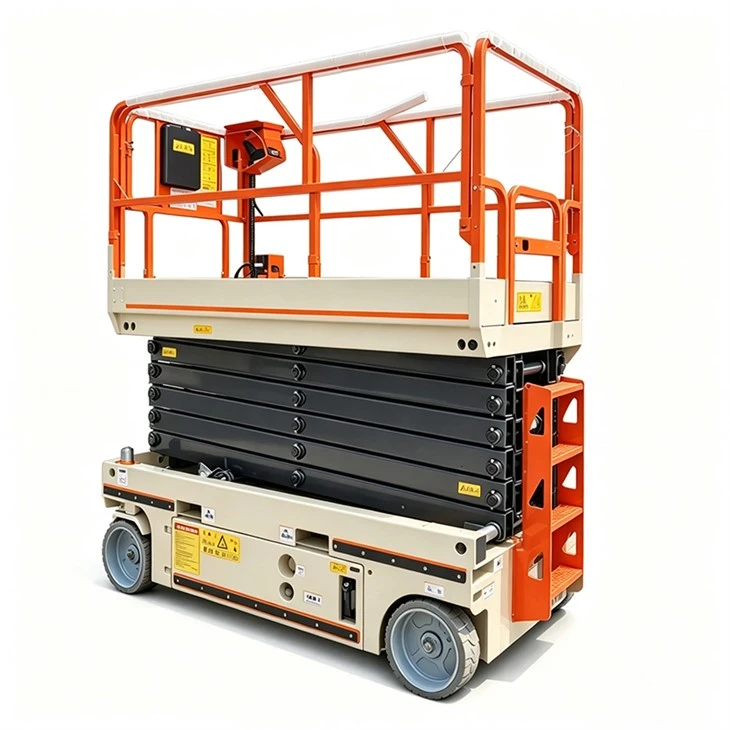

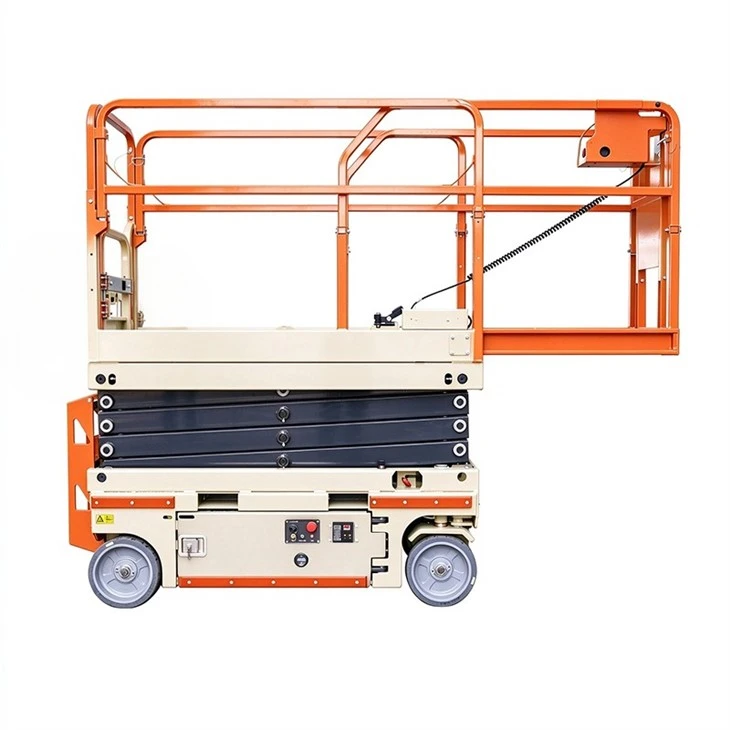

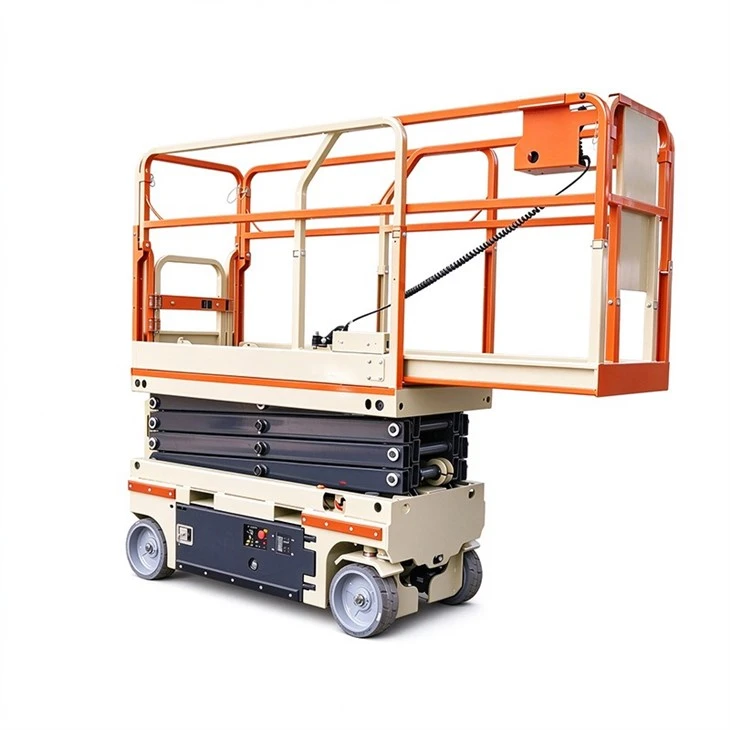

A proportional valve is one of the most critical core hydraulic components of a self-propelled scissor lift. Unlike ordinary on-off solenoid valves that only support full open or full closed operation, the electro-hydraulic proportional valve realizes stepless regulation of hydraulic flow and direction according to electric signal changes. It directly determines the operating stability, running smoothness, positioning accuracy and overall safety performance of self-propelled aerial work platforms.

1. Stepless Speed Regulation for Smooth & Stable Operation

The most important function of the proportional valve is continuous stepless speed adjustment. The operator's handle stroke will feed back different electrical signals to the controller, and the proportional electromagnet precisely adjusts the spool opening of the valve body according to the signal strength, thereby changing the hydraulic oil flow in real time.

In the lifting operation of the scissor lift: a small handle stroke leads to a small valve opening and slow lifting/lowering speed; a full handle stroke maximizes the flow rate and realizes fast operation. This design perfectly achieves soft start and soft stop, completely eliminating jitter, sudden rushing or stalling impact during platform operation.

In walking operation, the proportional valve controls the speed of the walking motor synchronously, realizing micro-speed movement. It greatly improves the flexibility of the self-propelled scissor lift in narrow construction spaces and facilitates precise positioning operations.

2. Accurate Direction Switching for Lifting & Traveling

The proportional directional valve undertakes the core direction switching work of the hydraulic system of the self-propelled scissor lift. It controls the flow direction of hydraulic oil to realize all basic actions of the equipment:

Forward oil supply: Push the hydraulic cylinder to extend, and the platform rises; drive the walking motor to rotate forward, and the equipment moves forward

Reverse oil return: Retract the hydraulic cylinder, and the platform descends; drive the walking motor to reverse, and the equipment moves backward

Compared with traditional valve bodies with single function and rigid switching, the proportional valve integrates speed regulation and direction control, making the equipment operation more integrated and responsive.

3. Load Adaptive Compensation to Stabilize Operating Speed

During the working process of the self-propelled scissor lift, the load is always changing in real time. Factors such as the change of the shear fork arm force angle, different bearing weights (no load, light load, full load) will cause fluctuations in the hydraulic cylinder load.

The proportional valve matches the PLC control system to realize automatic load compensation. Under the same handle operation stroke, the system will automatically adjust the hydraulic flow according to the load change, ensuring that the lifting and walking speed of the scissor lift remains stable. It effectively avoids the common problems of fast no-load operation and slow full-load operation of traditional lifting equipment, and maintains consistent operating experience all the time.

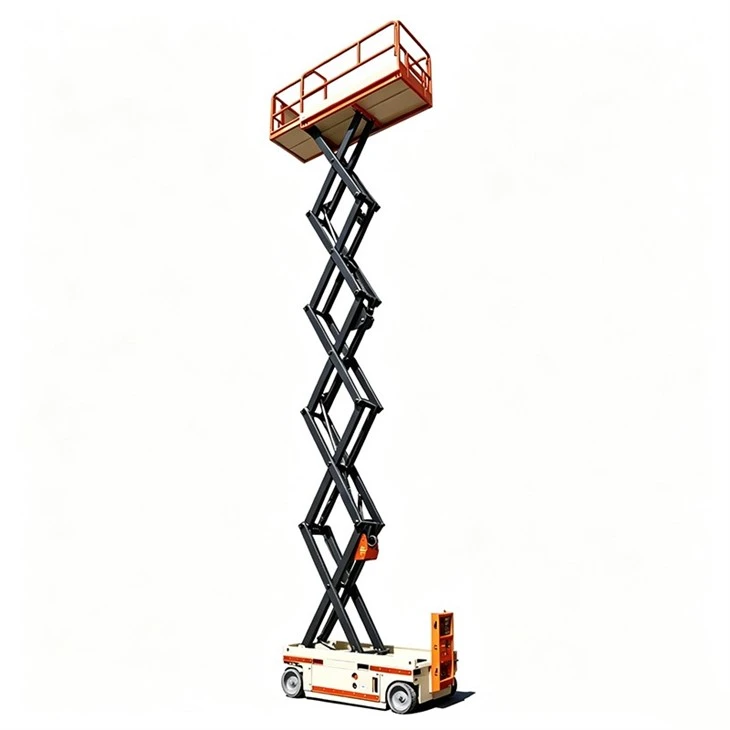

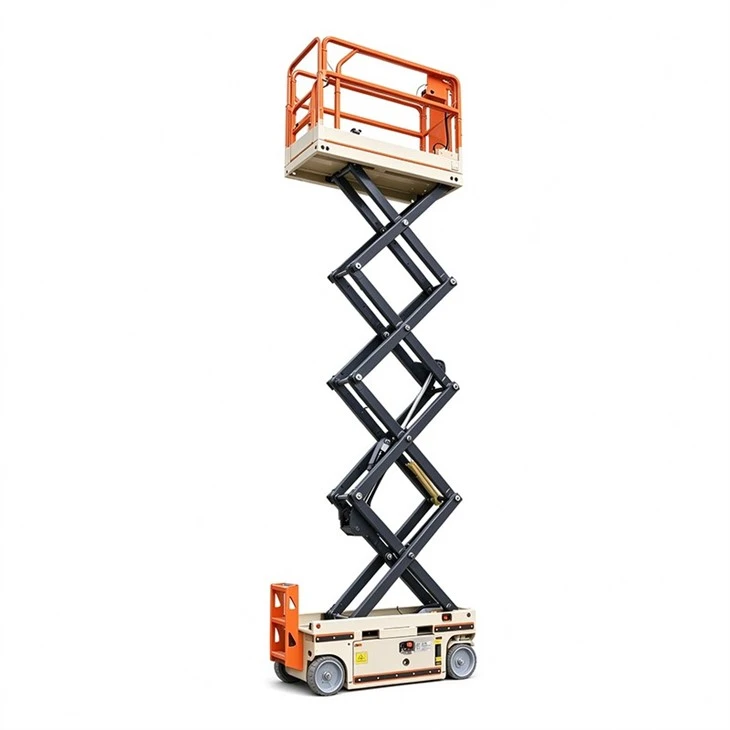

4. Multi-Cylinder Synchronization Control to Prevent Platform Tilting

Most high-load and large-platform self-propelled scissor lifts adopt a dual-cylinder synchronous lifting structure. As the core control component, the proportional valve can receive the displacement feedback signal of the two hydraulic cylinders in real time through the system.

The PLC independently adjusts the opening of the two groups of proportional valves to balance the oil supply flow of the left and right hydraulic cylinders, ensuring synchronous extension and retraction of the double cylinders. This function effectively avoids platform tilting and shear fork mechanism deflection caused by asynchronous cylinder movement, reduces equipment wear, and improves the stability and safety of high-altitude operation.

5. Intelligent Speed Limit & Soft Limit Safety Protection

The proportional valve cooperates with the equipment program to realize multiple intelligent safety protection mechanisms, which is an indispensable part of the safety system of self-propelled scissor lifts:

High-position speed limit: When the platform rises to a high altitude, the system automatically reduces the valve opening to limit the descending speed, preventing accidental falling caused by overspeed descent

Soft limit buffer: When the platform approaches the maximum lifting height or the lowest reset position, the proportional valve automatically decelerates to avoid hard impact and protect the shear fork structure and hydraulic accessories

Overload protection: Combined with pressure monitoring, it automatically limits hydraulic pressure and flow when overloaded, forbidding forced lifting to avoid equipment failure and safety accidents

6. Linear Operating Feel & Improved Work Efficiency

The proportional valve forms a linear proportional relationship between the handle stroke and the platform moving speed. The operation sensitivity is stable, and the speed changes smoothly without sudden acceleration or deceleration. Operators can easily master the operation rhythm and realize fine adjustment of the platform position, which is very suitable for high-precision high-altitude operations such as equipment installation, pipeline maintenance and facade construction.

Proportional Valve vs Balance Valve: Clear Functional Distinction

Many users easily confuse proportional valves with balance valves (explosion-proof valves), but their functions are completely different and complementary:

Proportional valve: Core functions are speed regulation, flow control and direction switching, focusing on operating smoothness and accuracy

Balance/explosion-proof valve: Installed at the root of the hydraulic cylinder, it is a safety valve. Its core function is to lock the hydraulic cylinder instantly when the oil pipe bursts to prevent the platform from falling, focusing onanti-falling safety protection

Final Summary

The proportional valve is thecore control heart of the hydraulic system of a self-propelled scissor lift. It realizes stepless speed regulation, stable load adaptation, precise synchronous control and intelligent safety protection of the equipment. It not only optimizes the operating feel and work efficiency of the aerial work platform, but also greatly improves the stability and safety of long-term construction operations. For high-quality self-propelled scissor lifts, high-precision proportional valves are the key to distinguishing high-performance equipment from ordinary low-end equipment.
