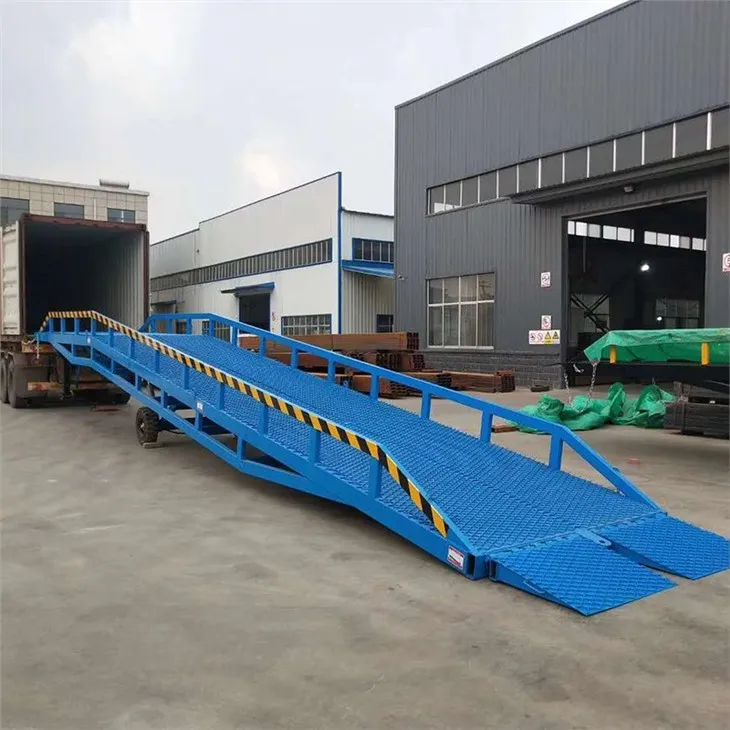

1. Length, the total length of the mobile boarding bridge is generally about 10 meters. According to the different tonnage, the carrying weight is different, 10500mm for 6 tons, 11200 meters for 8 tons, and 11300 meters for 10 tons. It is very suitable for use on the ground in the open field.
2. Slope, the mobile loading dock ramp itself must have a certain slope to allow the forklift to drive into the compartment for cargo loading and unloading. stability.
3. Width. The mobile ramp dock bridge must also have a certain width. If the width is too small, it is not conducive to the loading and unloading of forklifts. If the width is too large, it will occupy a certain space, which is unnecessary. So a reasonable width is necessary, usually the width of the mobile boarding bridge is 1800mm, 2000mm, 2100mm. The width of the mobile boarding bridge is divided into inner width and total width. We have already said that the inner width is the width of the passage, and the total width is mainly the width of the guardrails on both sides plus the width of the passage. In use, the overall width can be ignored, and everyone still cares about the inner width, which is the width of the channel.
4. Height, height As the most important item of the mobile dock ramp, the height can be adjusted according to the different vehicles of the goods so that it can be level with the platform of the carriage for batch loading and unloading of goods. Since different manufacturers produce mobile dock ramp, the height of the design and manufacture of the platform is also different from the ground. There are 1000mm and 1200mm from the ground. The height of the stroke can be increased by hydraulic pressure ranging from 300mm, 400mm, and 600mm. The height of the mobile boarding bridge itself plus the maximum height of the stroke is 1800mm, which can be satisfied by almost all freight vehicles (the height of general vehicles is 1600).
5. Operational degree, two operation methods can be used to operate the boarding bridge to rise and fall, one kind of manual pump station, which adopts manual hydraulic lifting, which is labor-intensive and laborious. Advantages: can be used in any situation. The two types of electric pump stations adopt electro-hydraulic lifting and lowering, which reduces labor intensity and saves labor. Disadvantages: Once the power is off, it will not be available, but now there are manual and electric mobile boarding bridges, which are more convenient to use.
