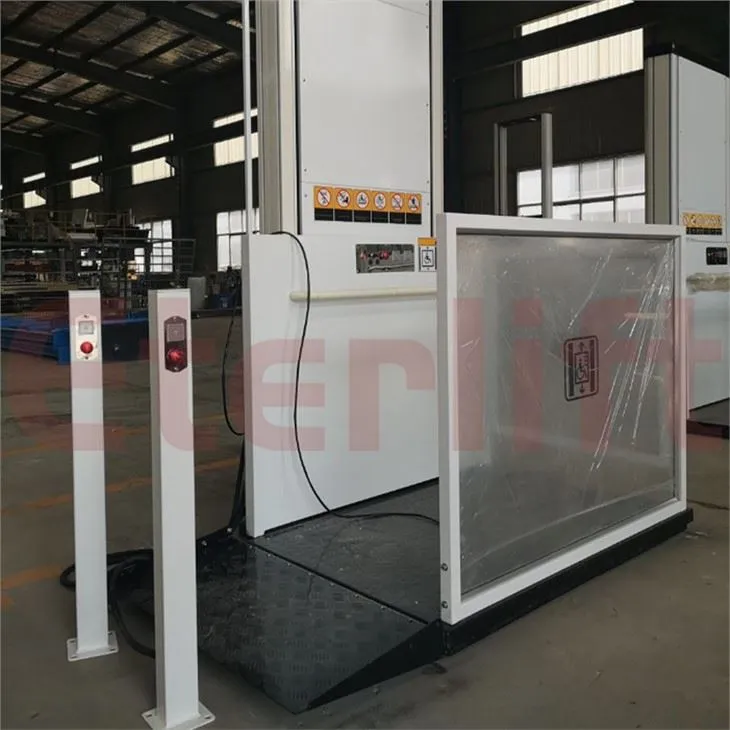

The wheelchair lift includes a platform and a movement mechanism, the platform is constructed to accommodate the wheelchair, and the wheelchair is fixed to the platform; the movement mechanism can move the platform between wheelchair loaded/unloaded positions on the ground, and the surface of the platform has pairs of left and right wheel bearing parts, When the wheelchair is fixed to the platform, the left and right wheels of the wheelchair are respectively positioned on the pair of left and right wheel bearing portions configured to absorb vertical vibration of the vehicle.
The upper and lower ends of the stair lift are supported by columns, and the columns are made of stainless steel. Each stair lift is equipped with a call box on the upper and lower walkie-talkie columns, with a call button, a platform folding button, and a key switch on the box. When the elevator needs to be used, first open the lock with a special key at the calling end, press the calling button, the platform will automatically run to the calling end and then open automatically; when the platform is used up, press the folding button, and the platform will stop using after it is automatically folded in place. state. The summoning box installed at the upper end of the entrance and exit should be able to be used in the open air, and the protection level of the shell should not be less than IP65.
There are charging points on the upper and lower parts of the stair lift. When the stair lift enters the charging device correctly, the battery starts to charge, and the indicator light of the charger flashes rapidly; when the battery is fully charged, the indicator light of the charger flashes slowly, and the battery enters the floating state.
Safety gear and speed limiter: Under rated load, the safety gear can stop the platform and keep the platform in place within a distance of 150mm. When the safety gear is in action, the deflection of the platform shall not be greater than 5 degrees. When the safety gear operates, the power supply of the drive motor and the brake should be cut off at the same time. The speed limiter should accurately reflect the speed of the wheelchair platform, and the safety gear should be activated before the speed exceeds 0.3m/s.
The wheelchair platform is prevented from running. The wheelchair platform is provided with a contact blade and a contact surface. After encountering an obstacle, the platform should be stopped within a distance of 20mm. The average resistance measured at both ends and midpoint of the blade should not exceed 30N.
