Elevators and Lifting Platforms
1. When equipped with elevators in public buildings, barrier-free elevators must be installed.
2. Barrier-free facilities and design requirements for the waiting hall:
(1) The minimum depth of the waiting hall is 1m;
(2) The call button is 0.9-1.1m high;
(3) The minimum net width of the elevator door opening is 0.9m;
(4) Clearly display the up and down running direction of the car, the number of floors and the elevator arrival sound;
(5) Floor signs should be installed at the elevator entrance on each floor, and a prompt for the blind should be provided.
3. Barrier-free facilities and design requirements for elevator cars used by the disabled:
(1) The minimum clear width to open is 0.8m;
(2) The minimum depth of the car is 1.4m, and the minimum width is 1.1m;
(3) Handrails with a height of 0.80-0.85m should be set on the front and side of the car;
(4) A floor selection button with Braille should be installed at a height of 0.9-1.1m on the side of the car;
(5) Mirrors should be installed from the front of the car to the height of 0.9m to the top;
(6) There should be clear display and floor reporting sound for the up and down movement and arrival of the car.
4. When there are only elevators for passengers and goods, services should be provided for the disabled and the elderly.

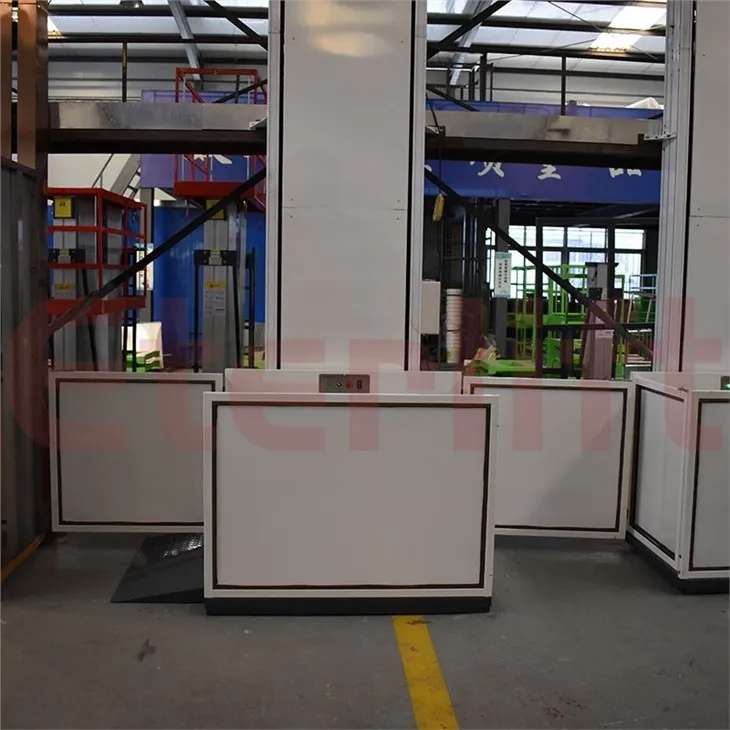

5. Lifting platforms for wheelchair users shall meet the following requirements:
(1) When it is difficult to carry out barrier-free construction or renovation at the ground height difference of building entrances, halls, passages, etc., lifting platforms should be used instead of wheelchair ramps;
(2) The area of the lifting platform should not be less than 1.2mx0.9m, and the platform should be equipped with handrails or baffles and start buttons.
