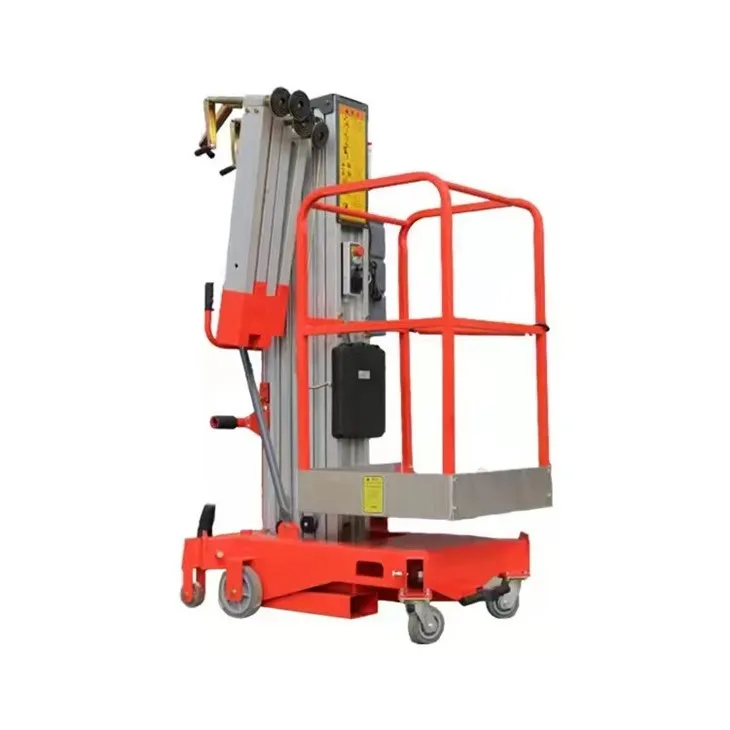

The aluminum alloy lifting structure of a single mast lift is typically connected using a combination of structural components like extrusions, bolts, and fastening systems designed for lightweight but strong connections. Here's how the connections usually work:
Mast Components: The lifting structure typically consists of two or more vertical masts made from aluminum alloy extrusions. These extrusions are designed to interlock and slide smoothly. The masts are often constructed in segments for ease of transport and assembly.
Base and Mast Connection: The base of the lift is usually where the mast is anchored. The bottom of the mast is connected to the base frame using bolts, welds, or other mechanical fasteners. This base provides stability when the lift is in use.
Guide Rails and Pulley System: Aluminum alloy guide rails are often mounted along the sides of the mast to ensure the lifting platform moves smoothly as the mast moves up and down. The pulley system is typically mounted at the top or along the sides of the mast, with cables or chains that help move the platform.
Connection of Horizontal Elements: Horizontal crossbars or supports are connected to the vertical mast components. These horizontal components are usually fastened with bolts or screws, and they provide structural support for the platform or load that is being lifted.
Platform Mounting: The platform is often connected to the mast with either a direct attachment to the mast using brackets or through a pulley system. In some designs, the platform is attached to a set of cables or a chain that runs through the lifting mechanism and is wound or unwound as the mast moves.
Pin and Locking Mechanisms: To secure the lifting structure in place during operation, various locking pins or mechanisms are used. These ensure that the mast sections remain securely aligned when lifting or lowering loads.
Electrical or Manual Lifting Mechanisms: Depending on the design of the lift, there may also be electrical motors or manual winches that are connected to the lifting system. These are often mounted on the mast or platform itself.
Aluminum alloy is used for these structures because of its high strength-to-weight ratio, corrosion resistance, and ease of fabrication, making it ideal for lifting equipment where light weight and durability are key factors.
