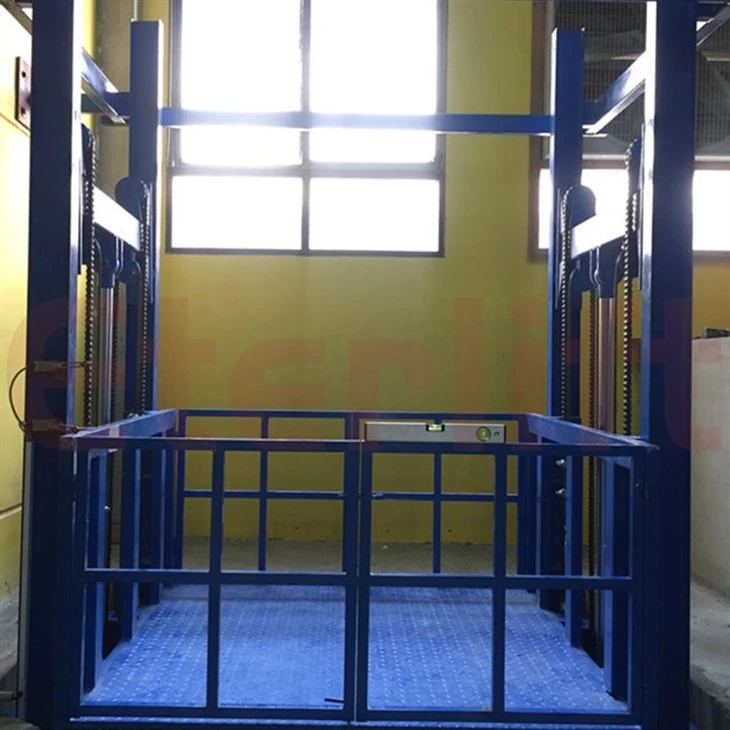

Qingdao Eterlift Machinery Co., Ltd. is one of the leading manufacturers and suppliers of reciprocating rail lift in China, also supports customized service. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy durable reciprocating rail lift made in China here from our factory.
Easy to install:
The product arrives 80% pre-assembled. When you receive it, you just need to fix the guide rails to the wall and connect the AC power Add hydraulic oil as required. During use, the limit switches can be fine-tuned as needed.
Customized:
The load capacity, lifting height, and platform size of the cargo lift can be customized according to your requirements.
Durable:
The freight elevator use H-shape guide rails (Q355 steel), chrome-plated hydraulic cylinders, CE-certified electrical components, and highly wear-resistant seals; double 8-plate leaf chains and double 10 cm diameter safety cables.

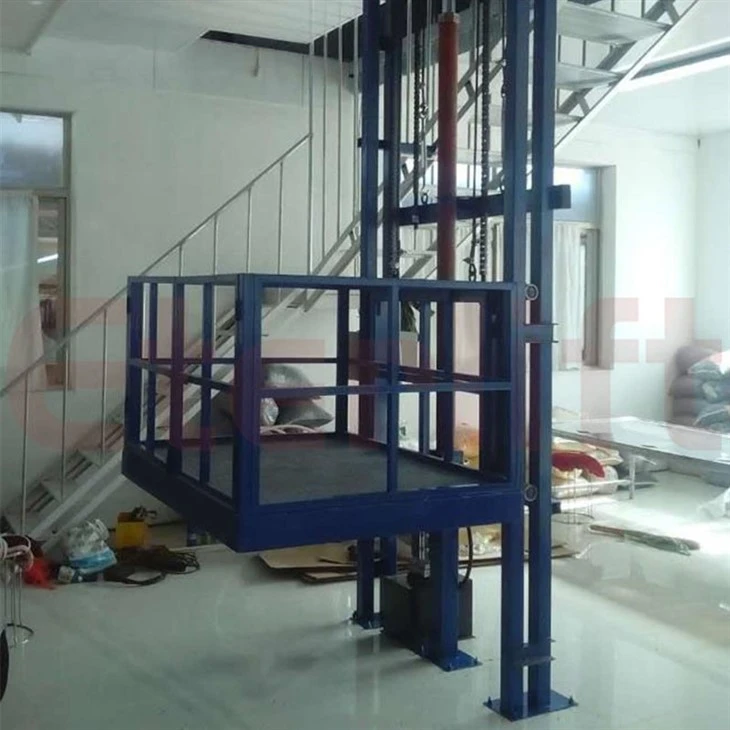

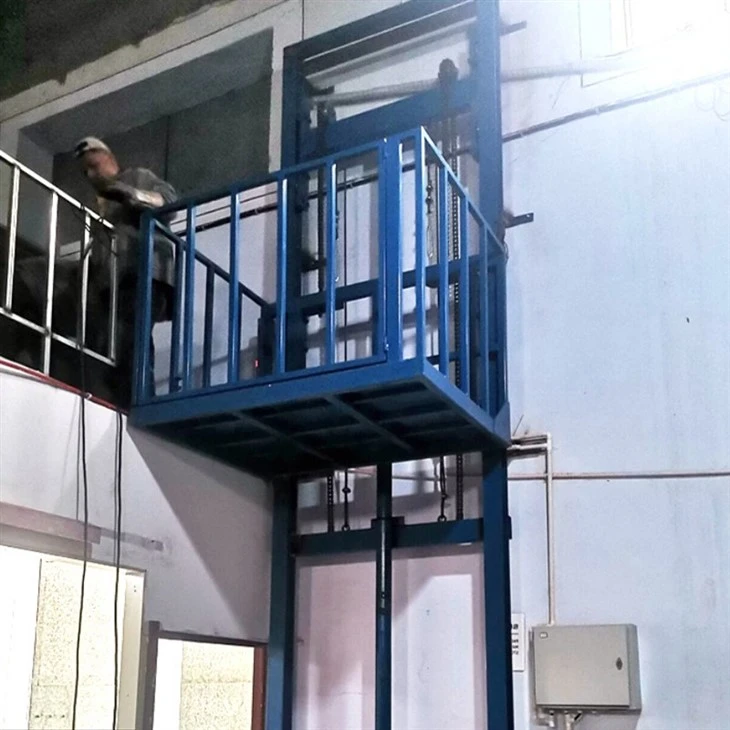

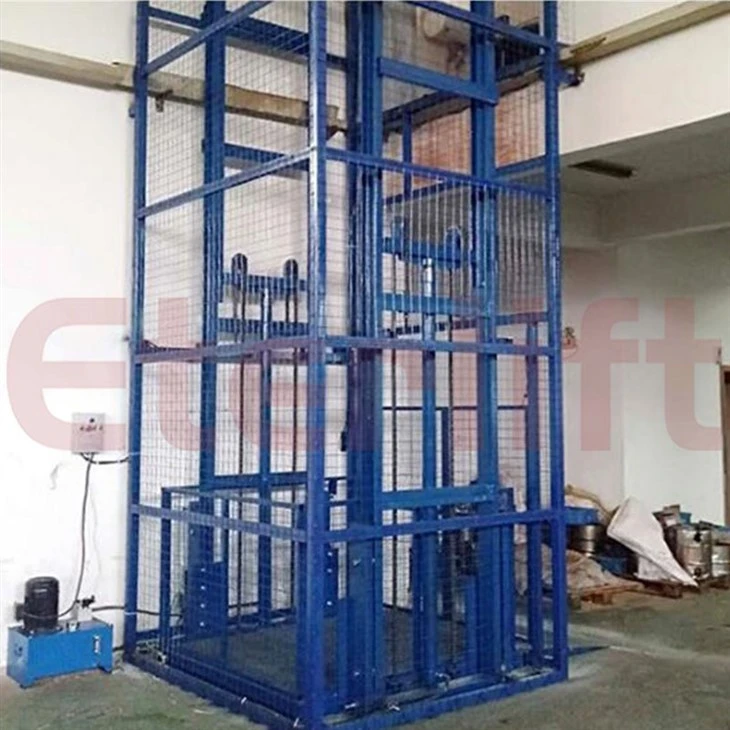

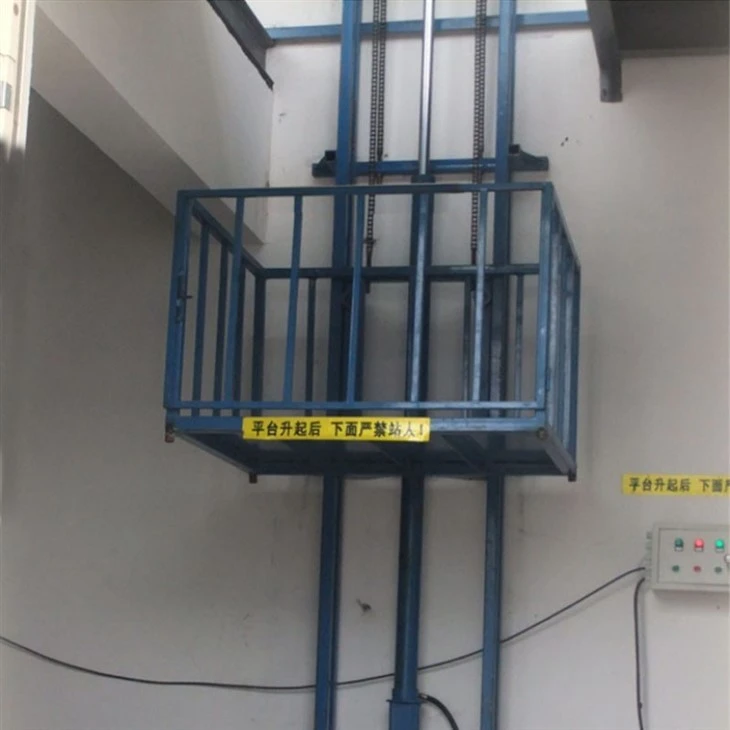

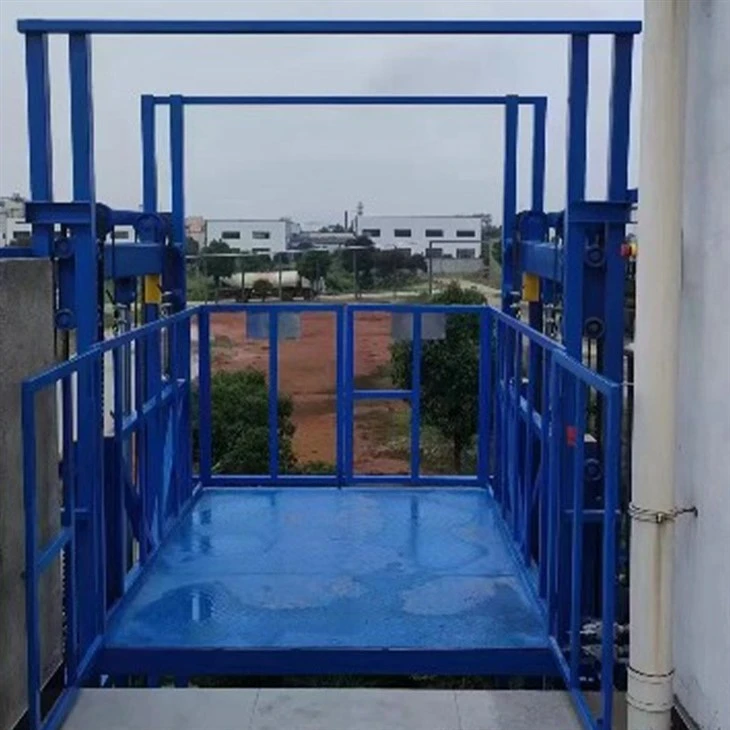

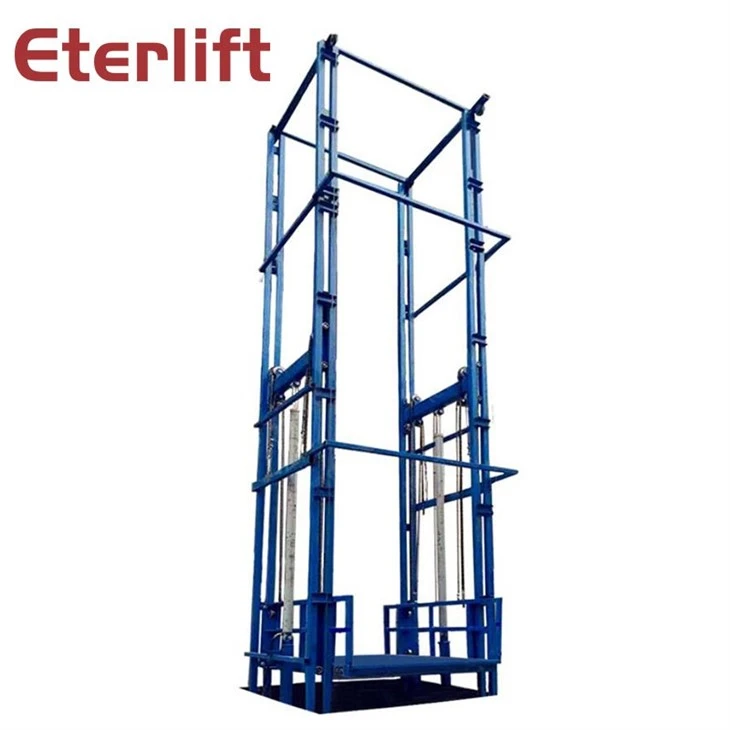

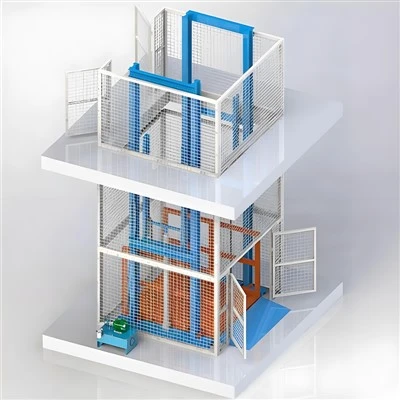

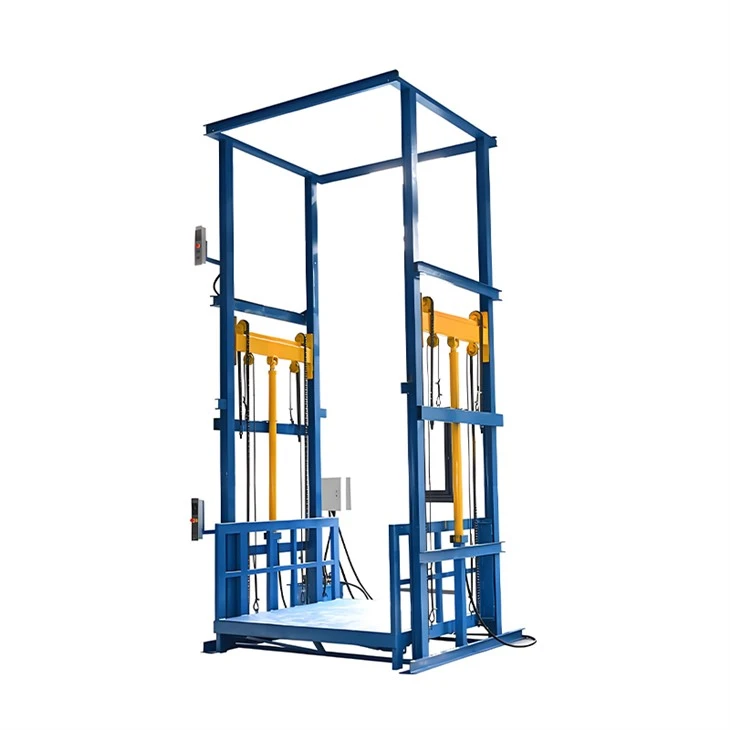

Reciprocating rail lift (also known as vertical reciprocating conveyor, VRC) is widely used in warehouses, production lines, factories and logistics centers for vertical material handling. The guide rail is the core load-bearing and guiding component of a reciprocating freight lift, which directly affects equipment stability, operating safety, load capacity and service life. Choosing the right reciprocating rail lift guide rail material is essential for reducing maintenance costs and improving continuous operation efficiency.
Different working environments, load weights and operation frequencies require different guide rail materials. This article introduces the most commonly used guide rail materials for reciprocating freight lifts, including carbon steel, high-strength alloy steel, stainless steel, cast iron and aluminum alloy, as well as their features, advantages, limitations and applicable scenarios to help you make the best selection.
1. Q235B Carbon Structural Steel (Most Popular Standard Material)
Q235B carbon steel is the most mainstream guide rail material for conventional reciprocating rail lifts in the industry. The common profiles include cold-drawn solid T-shaped guide rail, H-beam, channel steel and thick-walled rectangular pipe. For general roller-guided reciprocating lifts, H-beam and square tube are the most widely used rail structures.
Key Advantages
Excellent weldability and plasticity, easy for processing, cutting and on-site installation
Cost-effective with stable supply and low procurement cost
Support surface high-frequency quenching treatment to improve surface hardness and wear resistance
Good overall toughness, suitable for frequent start-stop reciprocating operation
Limitations
The yield strength of Q235B is 235MPa. Under heavy load, high lifting height or long-term partial load conditions, lateral deflection may occur. Ordinary carbon steel is prone to rust in humid environments, so anti-rust painting or plastic spraying treatment is required.
Application Scenarios
Ideal for light and medium-duty reciprocating rail lifts below 3 tons, indoor warehouses, ordinary factory production lines, and normal humidity working conditions. It is the standard configuration for most conventional vertical reciprocating conveyors.
2. Q355B Low Alloy High Strength Steel (Heavy-Duty Preferred Material)
Q355B high-strength steel (updated from Q345B) is the preferred guide rail material for heavy-duty reciprocating rail lifts and high-frequency continuous operation equipment. It adopts H-beam, thick-walled rectangular tube and customized T-section steel as the main rail profiles.
Key Advantages
High yield strength (355MPa), much higher rigidity and bending resistance than Q235B
Strong impact resistance, suitable for 24-hour continuous reciprocating impact load
Small deformation under high load and high lifting height, stable guiding performance
Good welding performance, convenient for overall frame assembly
Limitations
The material cost is higher than Q235B, and anti-corrosion treatment such as sandblasting and plastic spraying is still required for humid environments.
Application Scenarios
Best for heavy-duty reciprocating rail lifts above 3 tons, automated production lines, high-lifting-height vertical conveyors, and equipment with frequent partial load and impact load.
