Model Number | HS06 | HS08 | HS10 | HS12 | |
Max platform height | mm | 6000 | 8000 | 10000 | 11800 |
Max working height | mm | 8000 | 10000 | 12000 | 13800 |
Load capacity | kg | 300 | 300 | 300 | 300 |
Maximum height when closing (guardrail stands up) | mm | 2150 | 2275 | 2400 | 2525 |
Maximum height when closing (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
Total length | mm | 2400 | 2400 | 2400 | 2400 |
Total width | mm | 1150 | 1150 | 1150 | 1150 |
Platform size | mm | 2270x1150 | 2270x1150 | 2270x1150 | 2270x1150 |
Extended platform Length | mm | 900 | 900 | 900 | 900 |
Minimum ground clearance (closed state) | mm | 110 | 110 | 110 | 110 |
Minimum ground clearance (lifting state) | mm | 20 | 20 | 20 | 20 |
Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
Minimum turning radius (inner wheel) | mm | 0 | 0 | 0 | 0 |
Minimum turning radius (outer wheel) | mm | 2100 | 2100 | 2100 | 2100 |
Machine moving speed (closed state) | km/h | 3.5 | 3.5 | 3.5 | 3.5 |
Machine moving speed (lifting state) | km/h | 0.8 | 0.8 | 0.8 | 0.8 |
Rise/fall speed | sec | 70/80 | 70/80 | 70/80 | 70/80 |

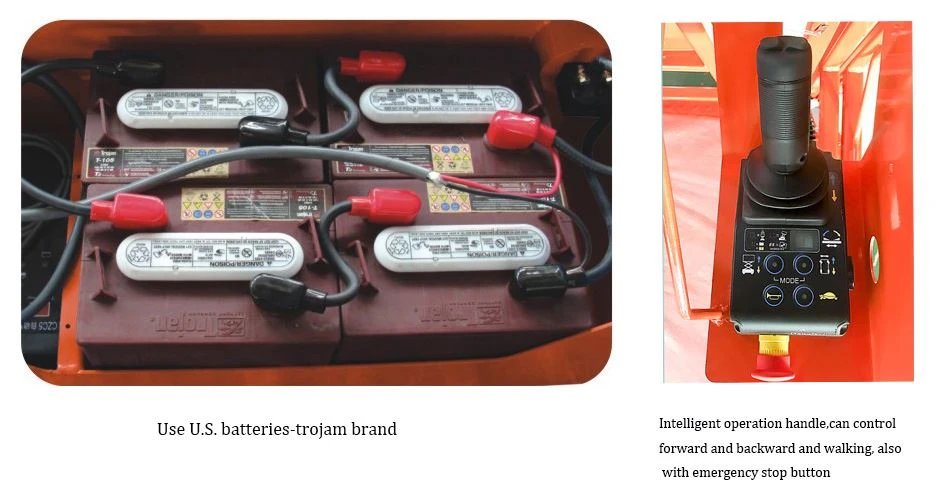

Battery | V/Ah | 4x6/210 | 4x6/210 | 4x6/210 | 4x6/210 |
Charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 |
Maximum climbing ability | % | 20 | 20 | 20 | 20 |
Working maximum allowable angle | / | 2-3° | 2-3° | 2-3° | 2-3° |
Driven | / | Double front wheel | |||
Hydraulic brake wheel | / | Double rear wheel | |||
Wheel size | / | Φ381x127 | Φ381x127 | Φ381x127 | Φ381x127 |
Extended platform load capacity | kg | 113 | 113 | 113 | 100 |
Net weight | kg | 1900 | 2080 | 2490 | 2760 |
1. Equipped with a safety explosion-proof device to prevent the hydraulic pipeline from rupturing
2, Eequipped with leakage protection device and phase failure protection device

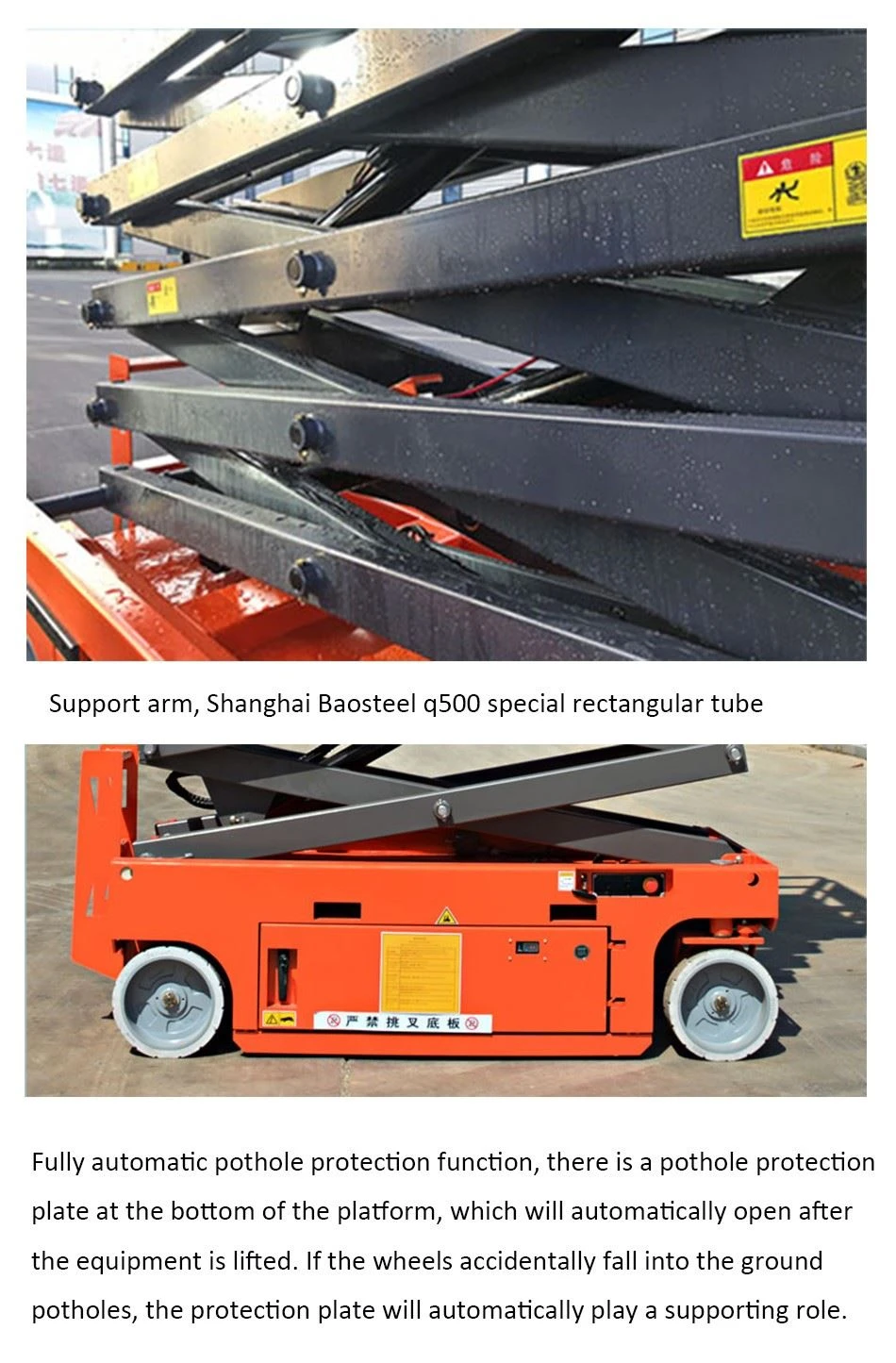

3. lifting mechanism is made of high-strength manganese steel huge tube
4. Equipped with a safety device to prevent overloading of the lifting platform
5. Equipped with an emergency lowering device in the event of a power outage

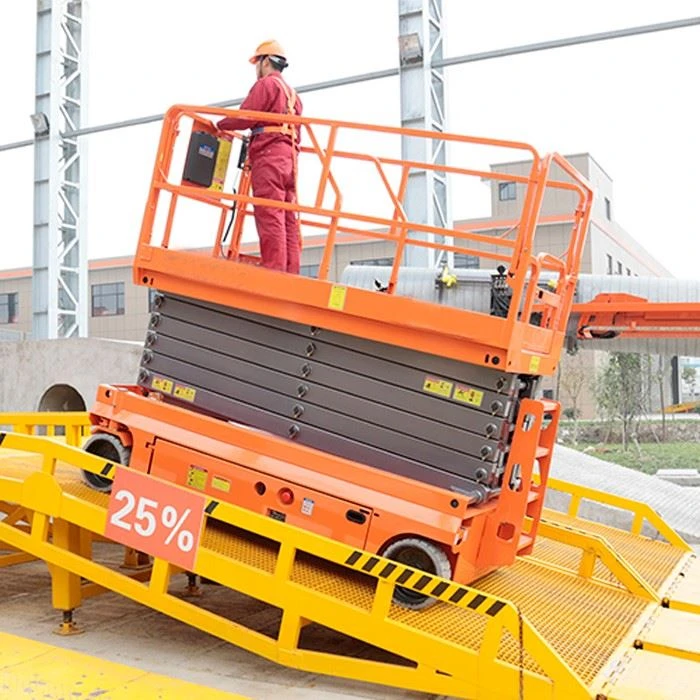

The mobile lifting platform is a versatile special equipment for aerial work. Its scissor mechanical structure makes the lifting platform have a higher stability, a wide working platform and a higher carrying capacity, which makes the aerial working range wider and suitable for multiple people working at the same time. It makes the aerial work more efficient and more secure. Mainly used for indoor and outdoor mechanical installation, equipment maintenance and construction maintenance of stations, docks, bridges, halls and workshops.
