| Model Number | MSL06 | MSL08 | MSL10 | MSL12 | |
| Max platform height | mm | 6000 | 8000 | 10000 | 11800 |
| Max working height | mm | 8000 | 10000 | 12000 | 13800 |
| Load capacity | kg | 300 | 300 | 300 | 300 |
| Maximum height when closing (guardrail stands up) | mm | 2150 | 2275 | 2400 | 2525 |
| Maximum height when closing (guardrail removed) | mm | 1190 | 1315 | 1440 | 1565 |
| Total length | mm | 2400 | 2400 | 2400 | 2400 |
| Total width | mm | 1150 | 1150 | 1150 | 1150 |
| Platform size | mm | 2270x1150 | 2270x1150 | 2270x1150 | 2270x1150 |
| Extended platform Length | mm | 900 | 900 | 900 | 900 |
| Minimum ground clearance (closed state) | mm | 110 | 110 | 110 | 110 |
| Minimum ground clearance (lifting state) | mm | 20 | 20 | 20 | 20 |
| Wheelbase | mm | 1850 | 1850 | 1850 | 1850 |
| Minimum turning radius (inner wheel) | mm | 0 | 0 | 0 | 0 |
| Minimum turning radius (outer wheel) | mm | 2100 | 2100 | 2100 | 2100 |
| Machine moving speed (closed state) | km/h | 3.5 | 3.5 | 3.5 | 3.5 |
| Machine moving speed (lifting state) | km/h | 0.8 | 0.8 | 0.8 | 0.8 |
| Rise/fall speed | sec | 70/80 | 70/80 | 70/80 | 70/80 |
| Battery | V/Ah | 4x6/210 | 4x6/210 | 4x6/210 | 4x6/210 |
| charger | V/A | 24/25 | 24/25 | 24/25 | 24/25 |
| Maximum climbing ability | % | 20 | 20 | 20 | 20 |
| Working maximum allowable angle | / | 2-3° | 2-3° | 2-3° | 2-3° |
| Driven | / | Double front wheel | |||
| Hydraulic brake wheel | / | Double rear wheel | |||
| Wheel size | / | Φ381x127 | Φ381x127 | Φ381x127 | Φ381x127 |
| extended platform load capacity | kg | 113 | 113 | 113 | 100 |
| Net weight | kg | 1900 | 2080 | 2490 | 2760 |

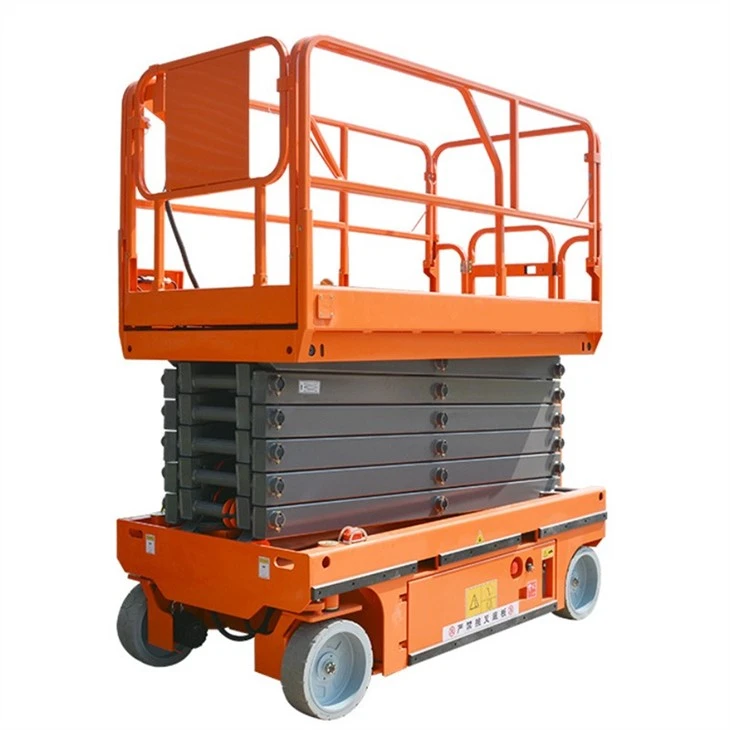

Introducing the game-changing Self-propelled Scissor Lift, the next generation of elevated platform technology! This innovative and versatile piece of equipment is designed to help you work smarter, not harder, by providing you with an elevated platform that can be maneuvered easily and safely to the desired location.
The Self-propelled Scissor Lift Offers a Safe and Efficient Elevated Platform solution for different types of work, including construction, maintenance, and repair work. This sophisticated machine is equipped with state-of-the-art features such as a sturdy platform, easy-to-use controls, and smart safety sensors.
The scissor lift is designed with a self-propelled feature which enables personnel to operate the machine while standing on the platform. This unique feature eradicates the need for additional manpower, reducing costs, and saving time. You can easily navigate the scissor lift in confined spaces and around obstacles, thereby avoiding any unexpected collisions.
Safety is always a top priority; hence, the scissor lift comes with advanced safety features such as emergency stop buttons, limit switches, and an intelligent control system that detects faults immediately, providing you with ultimate peace of mind. The elevated platform guarantees a stable base that can carry a considerable amount of weight, making it an ideal choice for heavy-duty work.
In summary, the Self-propelled Scissor Lift is a cost-effective, versatile, and reliable option for any elevation needs, ensuring increased efficiency, and minimizing workplace hazards. Invest in this state-of-the-art technology today and experience a new level of productivity for all your maintenance, repair, and construction work.
Hot Tags: self propelled scissor lift table, China, manufacturers, suppliers, factory, customized, buy, cheap, for sale, made in China
