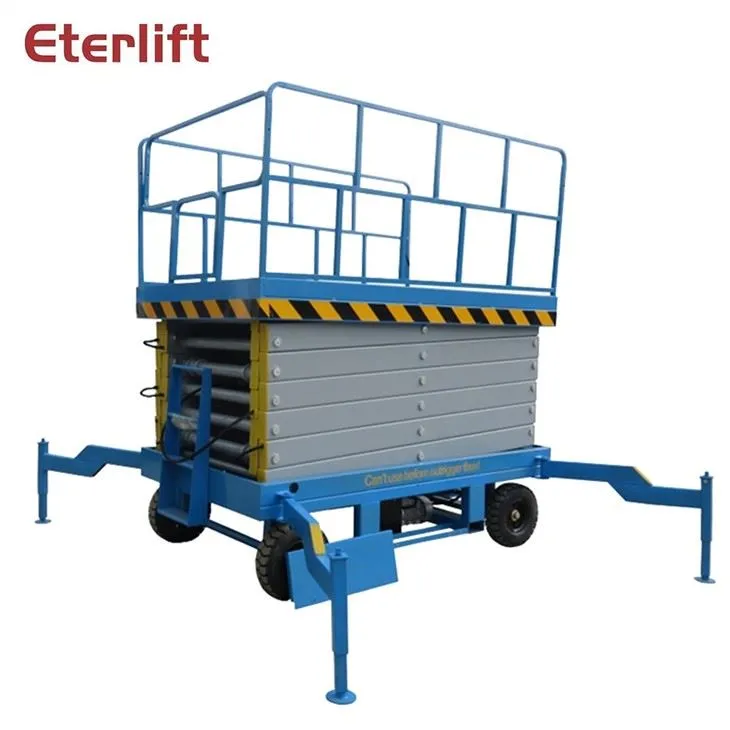

Electric Hydraulic Scissor Lift Table

Name: Electric Hydraulic Scissor Lift Table
Brand: Eterlift
SKU: 123475976

The electric hydraulic scissor lift table is divided into manual traction and auxiliary traction.Manual traction type electric hydraulic scissor lift needs to rely on human pull to walk, auxiliary traction type has motor drive, the front just need to be controlled well the direction can be. The electric hydraulic scissor lift is mainly composed by 3 parts, mechanical components, hydraulic system and electronic control system.Mechanical components are the frame of the entire equipment, divided into guardrail, shear fork structure, chassis.The hydraulic pump and electric control system are generally installed on the chassis, and the oil cylinder is installed in the position of the cutting fork structure.The battery can be customized to the user's needs. Qingdao EterLift Machinery Co., Ltd. has more than 20 years of hydraulic equipment production and management, in the equipment production excellence, to provide customers with quality products.

Send Inquiry

Description

Features of mobile lift table:

1. With four supporting legs,so its very stable and safe when working.

2. With heavy load,its load from 300kg-2000kg,can suit any place work.

Detail show:

The height of the guardrail is about 1 meter, it is detachable and easy to use. The high side table is 5mm, the platform is bent, the height of the skirting board is increased, and the safety factor is high.

2pcs of Control Panels,One is on the body,the other is on the platform

Joint venture cylinder, built-in explosion-proof valve, durable, hydraulic oil pipe, double-layer steel mesh rubber pipe, high-quality pump station, small size, high efficiency, 24v voltage, safe to use.

后面的图片

High-pressure electrostatic spraying, automatic shot blasting, paint adhesion, not easy to fade, 45# round steel shaft pin, fully automatic welding, large bearing capacity, firm structure

Model	Max. platform Height (m)	Load capacity	Table Size（mm)	Overall size(mm)	N.W.(kg)
Model	Max. platform Height (m)	Load capacity	Table Size（mm)	Overall size(mm)	N.W.(kg)
500kg Load capacity
ESL0504	4	500	2100*830	22509501100	800
ESL0506	6	500	2100*830	22509501200	880
ESL0507	7	500	2100*830	22509501280	970
ESL0508	8	500	2100*930	225010601380	1050
ESL0509	9	500	2100*930	225010601500	1165
ESL0510	10	500	2100*1230	225013501530	1360
ESL0511	11	500	2100*1230	225013501650	1400
ESL0512	12	500	2550*1530	279616701750	2260
ESL0514	14	500	2812*1530	306717301810	2400
ESL0516	16	500	2812*1600	306718002080	3500
ESL0518	18	500	3070*1600	332118102080	3900
1000kg Load capacity
ESL1004	4	1000	2100*1200	225013501180	1250
ESL1006	6	1000	2100*1200	220013501300	1400
ESL1008	8	1000	2100*1200	220013501420	1585
ESL1010	10	1000	2100*1200	220013501530	1700
ESL1012	12	1000	2550*1530	279616701750	2560
ESL1014	14	1000	2812*1530	306717501810	2765
1500kg Load capacity
ESL1506	6	1500	2100*1530	225017501530	1780
ESL1508	8	1500	2100*1530	225017501690	2070
ESL1510	10	1500	2100*1530	225017501850	2250
ESL1512	12	1500	2550*1530	225017621850	2900
ESL1514	14	1500	2816*1600	304518521960	3400
2000kg Load capacity
ESL2006	6	2000	2100*1530	225017501530	1780
ESL2008	8	2000	2100*1530	225017501690	2070
ESL2010	10	2000	2100*1530	225017501850	2250
ESL2012	12	2000	2550*1600	279618521954	3200
ESL2014	14	2000	2816*1600	306718522230	3900
