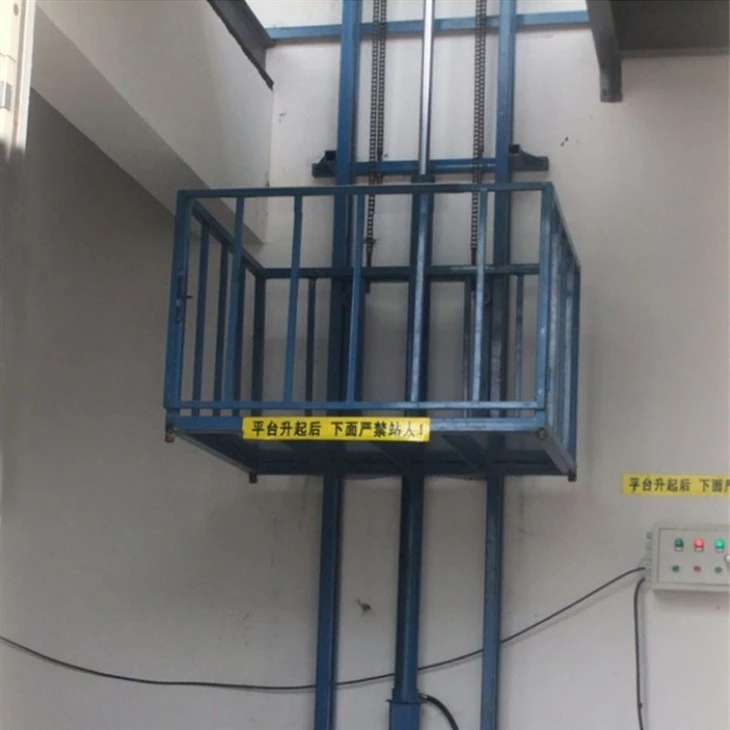

Single-Rail Freight Elevator – A Space-Saving Vertical Material Handling Solution
The single-rail freight elevator is a compact and efficient vertical transportation system designed for transporting goods between different floors in space-constrained environments. Featuring a single-rail structure, this freight elevator provides reliable lifting performance while minimizing installation footprint, making it an ideal solution for warehouses, factories, retail stores, mezzanines, and logistics facilities.
Compact Single-Rail Design
Unlike traditional double-rail freight elevators, the single-rail freight elevator uses a single high-strength rail to support and guide the platform. This simplified structure significantly reduces the space required for installation and allows for flexible installation on walls, within shafts, or along mezzanine edges. The guide rail only requires 25cm of space for installation. For larger load capacity rail-guided elevators, only 30cm of installation space is needed. Space needs to be reserved on both sides of the vertical lifting platform to prevent interference; generally, 5cm on each side is sufficient. For locations with limited space, 3cm can be reserved under conditions of good vertical alignment. The lower civil engineering requirements make it particularly suitable for retrofitting existing buildings.
Powerful Load Capacity and Stable Operation
Despite its compact design, the single-rail freight elevator ensures stable and safe vertical movement of goods. The reinforced rail system and precision guiding mechanism ensure smooth lifting and lowering even under full load conditions. Load capacity can be customized for different applications, from light warehouse handling to heavy industrial material transport; normally, single-rail freight elevators can handle loads up to 2 tons.
Safe and Reliable Lifting System
Safety is a key feature of the single-rail freight elevator. The system can be equipped with limit switches, overload protection, emergency stop buttons, safety interlocks, and anti-fall devices to ensure reliable operation. For some cheaper freight elevators, omitting safety ropes to save costs is extremely dangerous.
Flexible Drive Options
Single-rail freight elevators are typically powered by electric and hydraulic drive systems, allowing users to choose the most suitable configuration based on lifting height, load requirements, and usage frequency. For loads under 2 tons, a standard 110V-240V voltage can be used. For freight elevators with a load capacity of up to 3 tons or those with a lifting height exceeding 5 meters, a 380V voltage is required.
Easy Installation and Maintenance
Due to its simple structure, the single-rail freight elevator is quick to install and easy to maintain. For user convenience, the single-rail freight elevator is largely pre-assembled before shipment; users only need to fix the guide rails to the wall and connect the power supply to use it.
Typical Applications
Single-rail cargo lifts are widely used in:
Warehouses and distribution centers
Manufacturing plants and workshops
Retail stores and storage facilities
Mezzanine floors and storage lofts
Logistics and material handling operations
Main Advantages
Space-saving single-rail structure
Flexible installation for new or existing buildings
Stable and smooth vertical cargo transportation
Multiple safety protection options
Customizable load capacity and platform size
Provides efficient vertical transportation for modern facilities
The single-rail cargo lift is an economical and practical solution for businesses that require reliable vertical material handling but do not want to use complex systems like traditional freight elevators. Its compact design, safety features, and adaptability make it an excellent choice for improving efficiency in multi-story operations.
