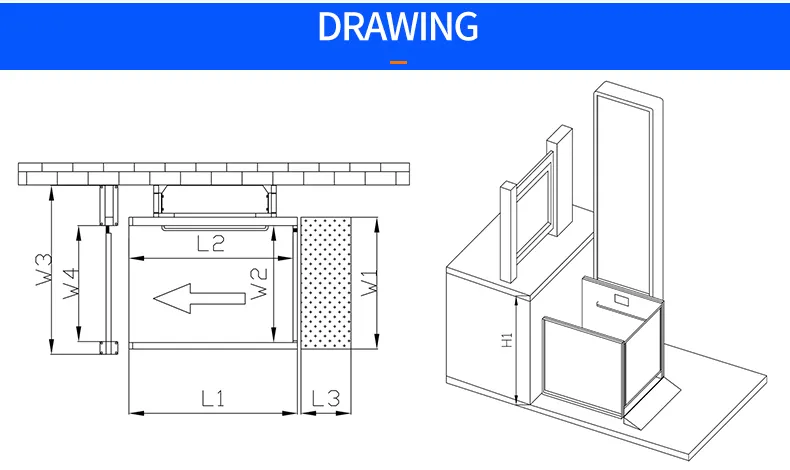

Size |
L1(cm) | 70-140 |
| L2(cm) | 60-130 | |
| L3(cm) | 50 | |
| W1(cm) | 50-100 | |
| W2(cm) | 40-90 | |
| W3(cm) | 80-1400 | |
| W4(cm) | 80 | |
| H1(cm) | 30cm to 1000cm(customized) | |
| voltage | 110V/220V/240V/380V/410V (50/60HZ) | |
| Motor | 1.5KW to 5KW | |
| Left door | YES/NO | |
| Right door | YES/NO | |
| Floor door | YES/NO | |
| Floor controller | YES/NO | |
| Automatic ramp | YES/NO | |
| Load capacity | 300KG | |
| Platform type | Pattern non-slip metal plate | |
| In and out direction | 90° Or 180°(customized) | |
| Working environment | Indoor and outdoor | |
| working temperature | -20°C - 60°C | |
| Installation mode | No foundation pit installation (fixed directly to concrete ground) | |
| Emergency stop button | Press the emergency button switch to control the machine to run, rise or fall | |
| Aluminum alloy bar |
When the platform is lowered will stop running immediately when it encounters an obstacle. |
|

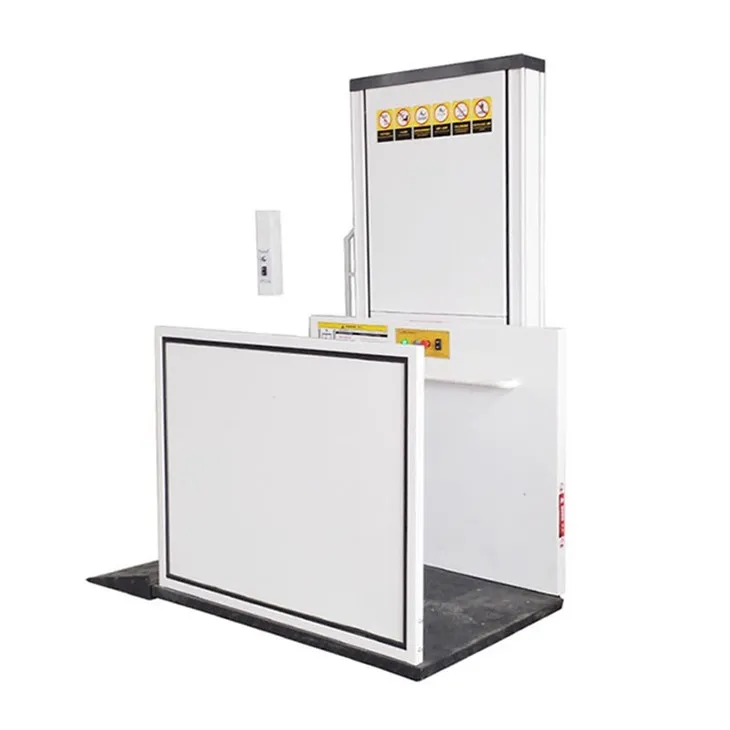

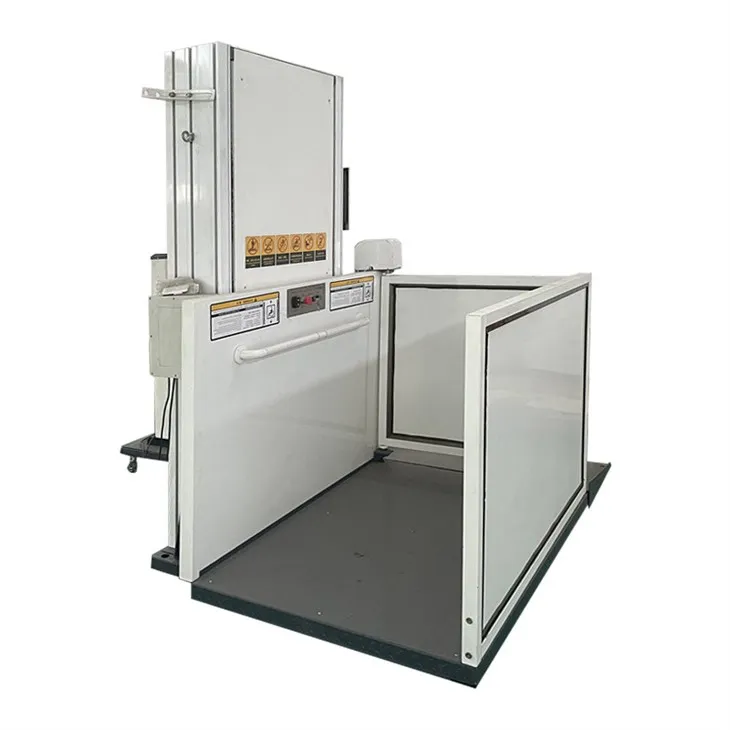

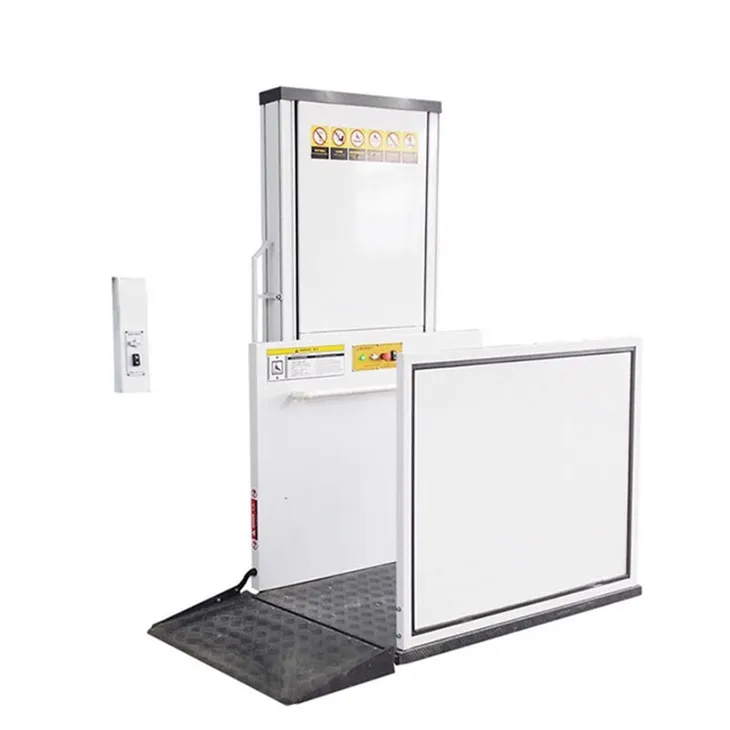

Home Electric Wheelchair Lifts: Enhancing Accessibility and Independence
Home electric wheelchair lifts are an effective and increasingly popular solution for improving accessibility in private residences. These lifts are designed to help wheelchair users move safely and comfortably between different levels of a house, reducing physical barriers, enhancing independence, and allowing residents to live in their homes longer without requiring extensive structural modifications.
A home electric wheelchair lift is a compact vertical lifting device powered by an electric motor, typically using a screw drive, hydraulic system, or chain mechanism. It is designed to transport wheelchair users (and in some cases, caregivers) vertically over short distances, such as porch steps, split-level entrances, or between floors within a house.
Unlike commercial elevators, home wheelchair lifts are smaller, easier to install, and optimized for vertical transport in low-rise buildings, making them suitable for villas, townhouses, duplexes, and private apartments.
Main Types of Home Electric Wheelchair Lifts
1. Vertical Platform Lifts (VPL)

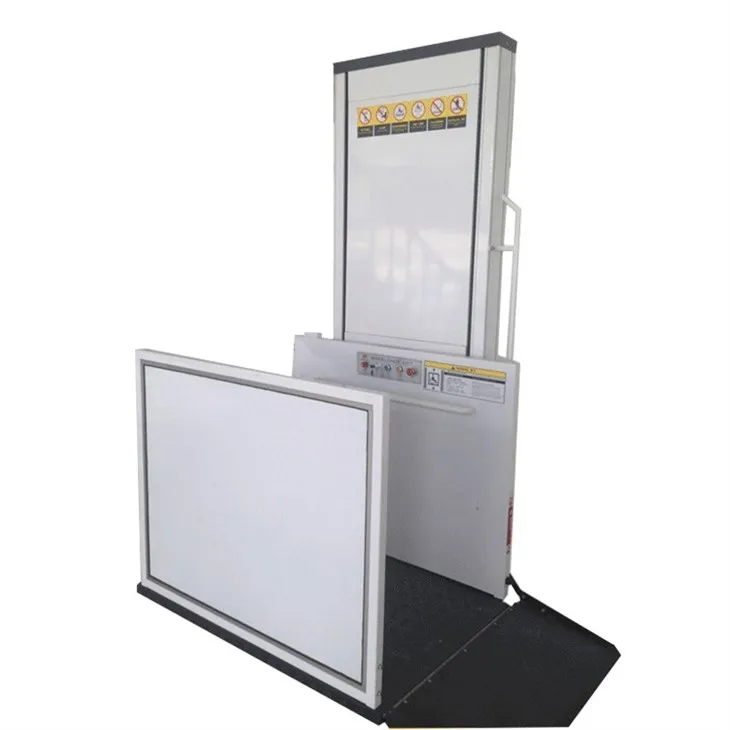

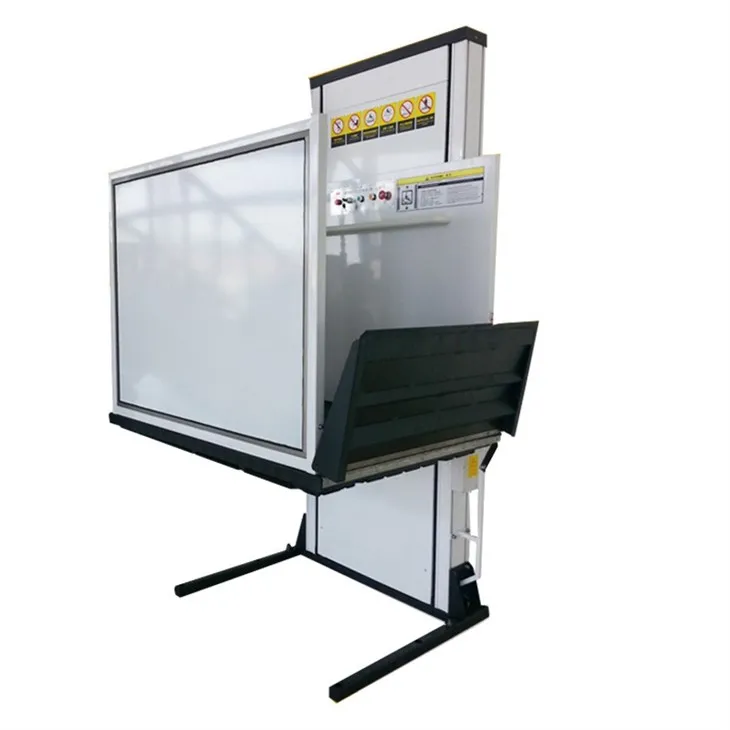

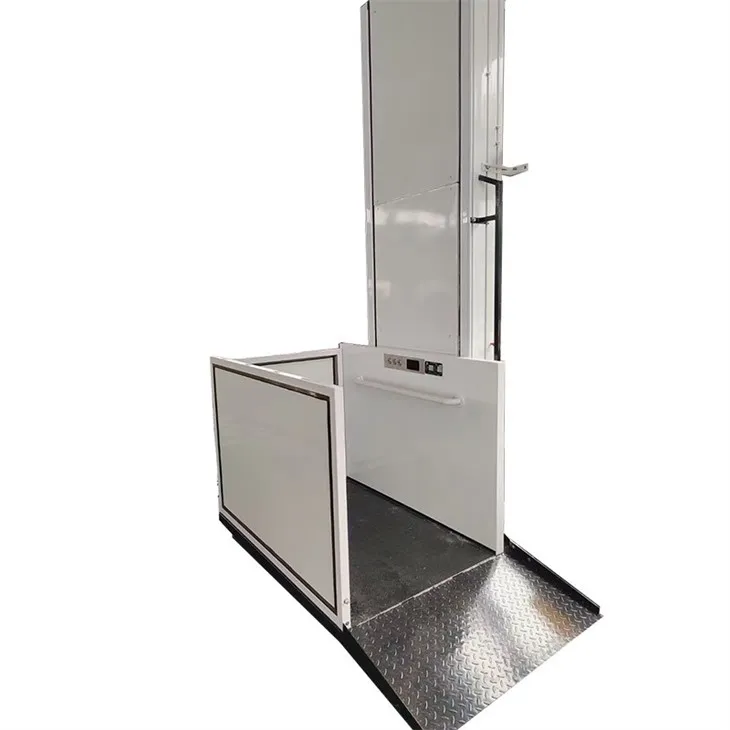

This is the most common type of home wheelchair lift. They move vertically up and down along guide rails and are ideal for lifting between one or two floors or from ground level to an elevated entrance.
2. Shaftless Wheelchair Lifts
These lifts do not require a full enclosed shaft, thus requiring minimal civil engineering work. They are typically installed indoors and are suitable for environments with limited space.
3. Enclosed Wheelchair Lifts

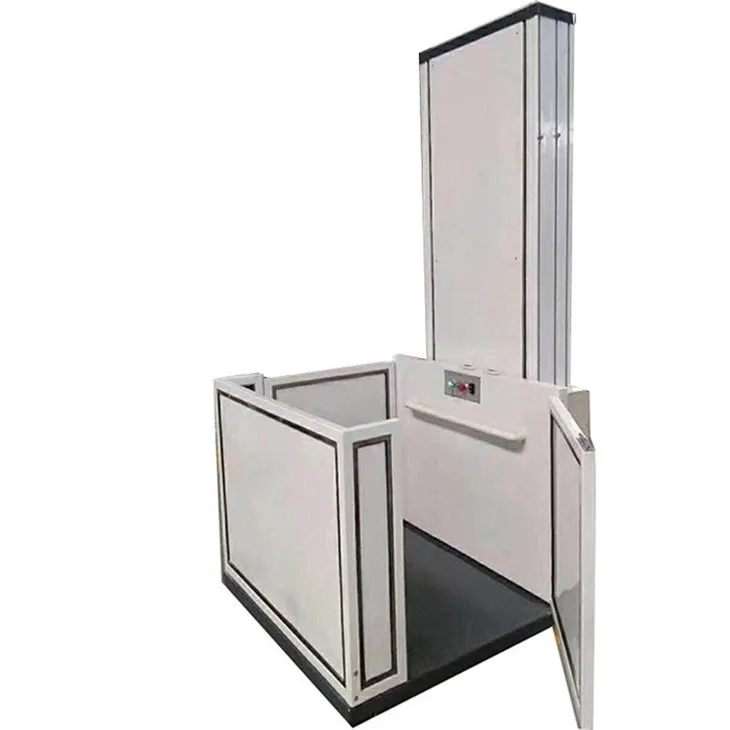

These lifts feature a fully enclosed cabin and doors, providing greater safety and weather protection. They are ideal for outdoor installations or for users who prioritize comfort and privacy.
