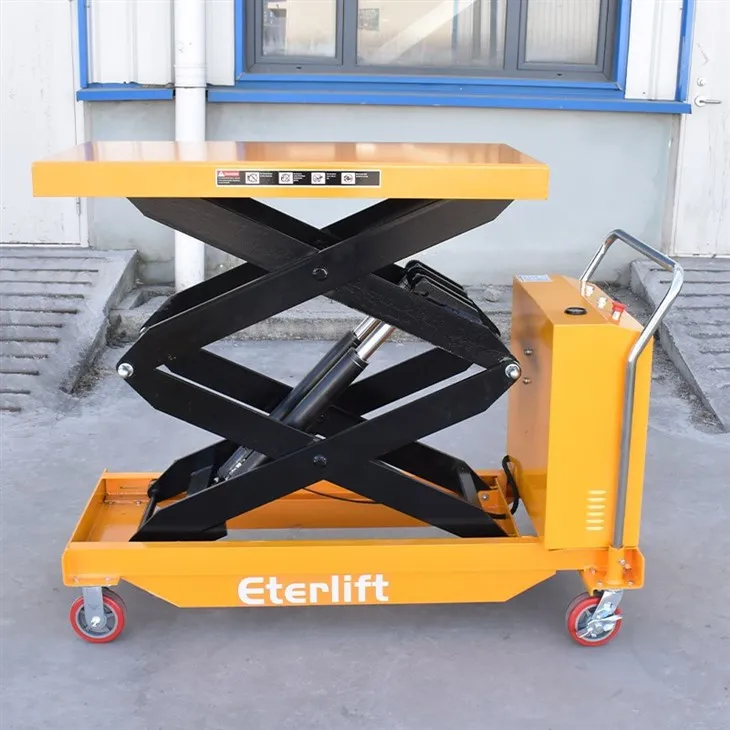

On Motorized Scissor Lift Carts, both the batteries and the hydraulic pump station are installed in a compact and accessible way to balance stability, weight distribution, and ease of maintenance. Here's how they are typically arranged:
Battery Location
Usually placed under the platform deck or inside the chassis base frame.
The batteries are positioned close to the drive wheels to lower the center of gravity and improve stability.
In some models, they are housed in a removable drawer or box at the side of the base, making replacement or charging easier.
Hydraulic Pump Station Location
Installed next to the batteries inside the base frame.
Consists of the electric motor, hydraulic pump, oil tank, and control valve group as a compact unit.
Positioned for direct connection to the lifting cylinder(s) with short hydraulic hoses to minimize pressure loss and reduce leakage risks.
Overall Layout Design
Battery + Pump station together in the base → keeps weight low for stability when lifting.
Control unit and wiring harness are mounted nearby for short connections.
Some designs have a service panel or hinged cover that can be opened for quick inspection, oil filling, or battery maintenance.
