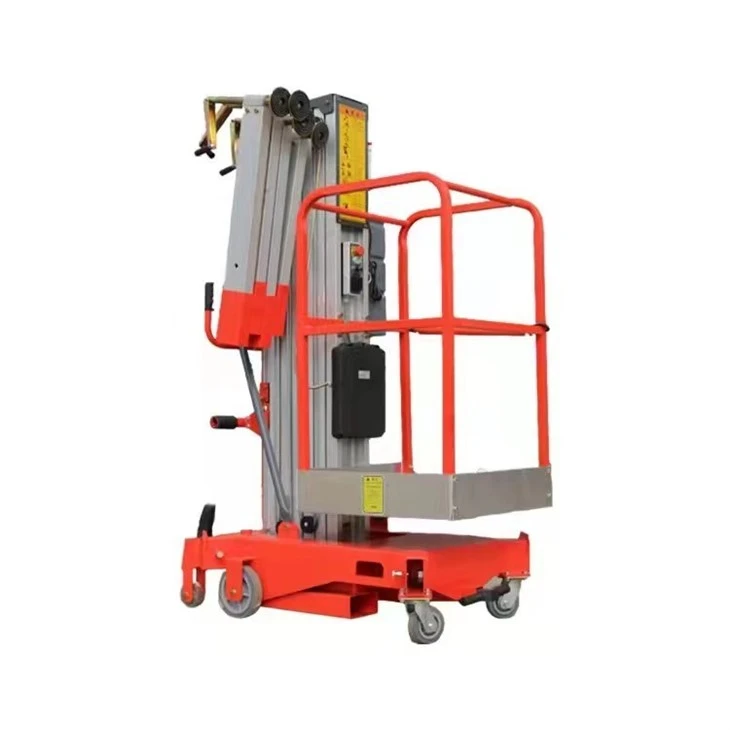

Attaching a vehicle-mounted Single Mast Vertical Lift (also called a truck-mounted aerial work platform or mast lift) to a pickup truck requires proper mounting so the lift is stable, safe, and does not damage the vehicle. Here's a step-by-step guide:
1.Check Vehicle Capacity
Payload & GVWR: Confirm the pickup truck's payload rating and Gross Vehicle Weight Rating (GVWR). The lift, plus hydraulic/power units, must not exceed the truck's allowable load.
Bed size: Make sure the mast lift's base fits inside the truck bed (or on the chassis if frame-mounted).
2.Mounting Options
There are generally two ways to attach:
A. Bed-Mounted (common for pickups)
Position the lift inside the truck bed, centered near the rear for balance.
Install a reinforced steel mounting plate under the lift's base.
Bolt the lift through the truck bed into the plate using high-strength bolts (Grade 8 or equivalent).
Add cross-bracing or side plates if the mast height is tall, to prevent sway.
B. Chassis/Frame-Mounted (heavier-duty setups)
Remove the truck bed (optional) and fix the lift directly to the truck's chassis.
Weld or bolt a subframe that distributes the lift's load across multiple frame rails.
This method provides better stability but usually requires fabrication and professional installation.
3.Stability & Outriggers
Most single mast lifts require outriggers or stabilizer legs for safe operation.
Attach foldable outriggers to the lift's base frame, so when deployed, they rest on the ground outside the truck bed.
Ensure outrigger pads or jacks are rated for the load.
4.Power Supply
Hydraulic-powered models: Connect to a hydraulic pump powered by the truck's PTO (Power Take-Off) or a 12V/24V DC hydraulic power pack connected to the truck's battery.
Electric-powered models: Wire the lift to the truck's auxiliary battery or install a dedicated battery pack.
5.Safety Considerations
Verify that the lift does not exceed the truck's center of gravity limits.
Use locking pins and brackets to secure the mast during travel.
Ensure the lift's folded height clears bridges and garage doors.
Always deploy outriggers before lifting a person.
